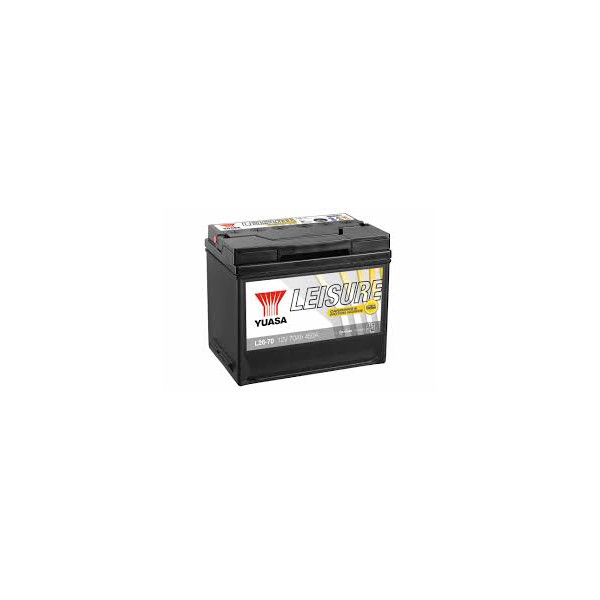

Yuasa 12V 70Ah 480A Leisure Battery 80 Cycles

• • Optimised for repeated charging & discharging
  • Original equipment quality & specification
  • NCC Verified Class C
  • Maintenance free
  • Supplied charged & ready to fit
  • Enhanced safety features including integrated flame arrestor and carry handle
  • 840 watt hours
  • 80 cycles

  Caravans, motorhomes, boats and other modern leisure vehicles feature more technology and electrical appliances than ever before. YBX Active Leisure and Marine batteries are specially designed to provide dependable, stress-free power and long life.

  Caution - when installed in an occupied space, this battery must be fitted with a breather pipe routed to the vehicle exterior.

• Tech Spec

• Case Type	GR24 BCI
  Voltage	12V
  Capacity at 20-hour Rate (Ah)	70
  Cold Cranking Performance (Amps) EN1	480
  Mean Weight with Acid (kg)	18
  Cell Layout	1
  Terminal	T1
  Recommended Charge Rate (Amps)	4
  Handles	Yes
  End-Venting	Yes
  State of Charge Indicator	Yes
  Terminal Type	T1
  Length (mm)	260
  Width (mm)	174
  Height (mm)	225
  NCC Class	Class C
  Feature Range	Leisure Batteries
